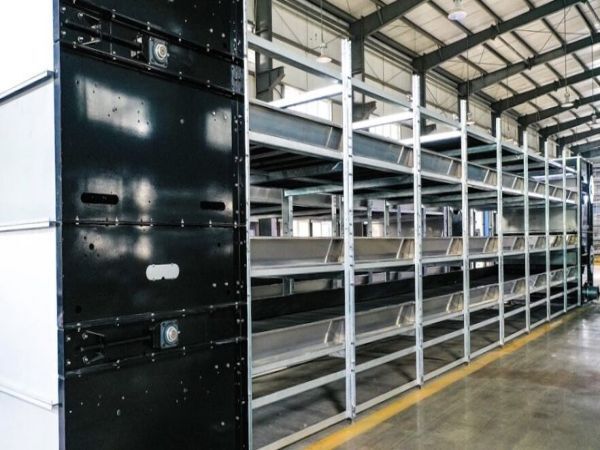

Brief introduction
It is designed for large or middle poultry farm to efficiently dry the wet chicken waste. Residual heat from chicken house and the warm ventilated air from poultry houses can be used to dry poultry manure converting it into a valuable organic fertilizer
The water content of the fresh manure is reduced from 70 to 75% to lower than 20%

Our features
1. Very low energy consumption
2. Highly compact and flexible
3. Requires little maintenance
4. Produces an end product with consistent properties
5. Fully automatic operation without supervision is possible
6. Through remixing, a separation of the manure is not necessary
7. Low dust generation through low air speeds
8. The moisture content in fresh chicken manure can be reduced to about 20% within 48 hours.
9. The production capacity is designed and manufactured according to the actual needs of customers, ensuring timely disposal of all the manure produced during the breeding process
10. Through the air drying process, it can block the odor generated by the fresh feces during the fermentation process, the breeding of pests and diseases, and other damage to the environment and personnel
11. Reduce fine dust by more than 60% and reduce the incidence of lung disease in livestock and workers
12. Dried chicken manure is suitable for long term storage to various fertilization seasons and significantly reduces transportation and storage costs
13. It is the best base material for processing biomass particles (high-grade organic granular fertilizer)

Choose us
Our service are from design schemes of turnkey poultry farm project, product introduction, offer quotation, delivery, installation instruction, equipment maintenance, to farm instruction and so on
20 years poultry equipment R&D and manufacturing with supporting of advanced German production technology
Our team is ready to service you 24 hours online

Material
High quality galvanized steel and stainless steel pipe plate, motor, galvanized steel, stainless steel, plastic and imported fittings, rolls, installation tools and so on

Fitting
Frame, filter, conveyor belt, steel pipe, steel plate, motor and so on

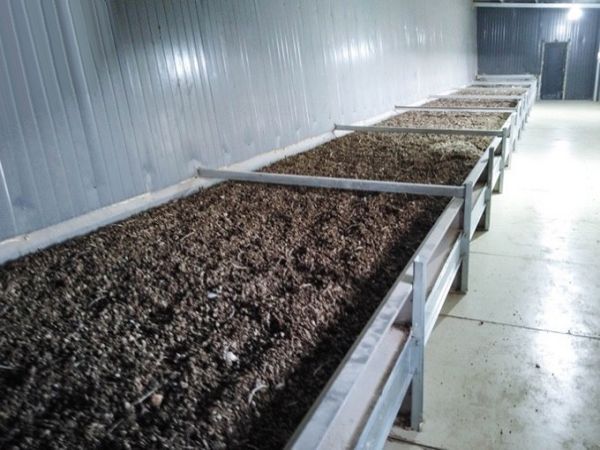

Working principle

A dosing belt delivers the manure directly on to the smooth perforated plates of the dryer

There is no requirement for pre to drying therefore the electricity costs is low

The manure is removed  from the poultry house on daily basis

It is deposited onto the belt within the dryer where it is remains for approximately two days

This limits the conversion to ammonia and optimizes the nitrogen content in the end product

The result is less ammonia in the air and a higher value end Product

Specification
It depends on the capacity of chicken

Automatic corollary system
The parts are front and Ends main frame with equipment, intelligent system, conveying system, output system, control system, exhaust system
1. Front and ends main frame with equipment
It is made of 5MM carbon steel welded and assembled, the surface is galvanized and sprayed with plastic
It is combined with the main engine drives the reduction motor, drive sprocket mechanism, bottom cleaning device, tail agitator and rotary mixer, it is working as a frame to support the whole system
2. Intelligent system
The manure plate is made of 3mm galvanized material stamping welding, plastic spraying surface treatment, column, guide rail using 4mm carbon steel plate bending welding, hot dip galvanized surface treatment
It is combined with dung board, manure plate chain, scraper chain, guide rail, scraper, column, the seal plate, shield baffle, it is the side face of the whole system
3. Conveying system
It is combined with galvanized plate frame, hot dip galvanized frame, equipped with green PVC conveyor belt, conveying the manure and manure are dried
4. Output system
It combined with oblique twisted dragon, horizontal twisted dragon and circular twisted dragon, the finished manure comes out from it
5. Control system
It is combined with PLC centrol control box, negative pressure fan control cabinet and transfer control cabinet, it manages the whole system running

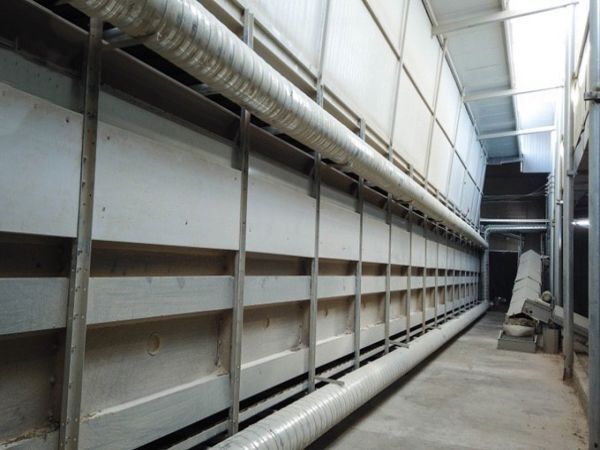

6. Exhaust system
It is combined with stainless steel pressure fan with high temperature resistance and high humidity motor, it cools the manure to normal temperature

Package
1. Full container: all are packed by wooden pallets, boxes, plastic wraps, it depends
2. Less container: all are packed by wooden pallets, boxes, plastic wraps, it depends
3. Local warehouse: all are packed by wooden pallets, boxes, plastic wraps, it depends

Delivery
1. Full or less container by sea
2. Local warehouse by truck

Installation
We supply to you the detailed instructions and steps of pictures or videos by email or express delivery, you supply to your farm manager and workers or send installation engineer to you

Maintenance
1. After installation, text the voltage stability to protect the motor
2. No more attention because of high quality material made
