Basic information

The major reasons why our company has upper edge than others are not limited to the following reasons, we produce standard products that meet the demands of the poultry farmers, our company meet the urgent needs of poultry farmers, and our products are readily available locally and globally and lots more

Product description

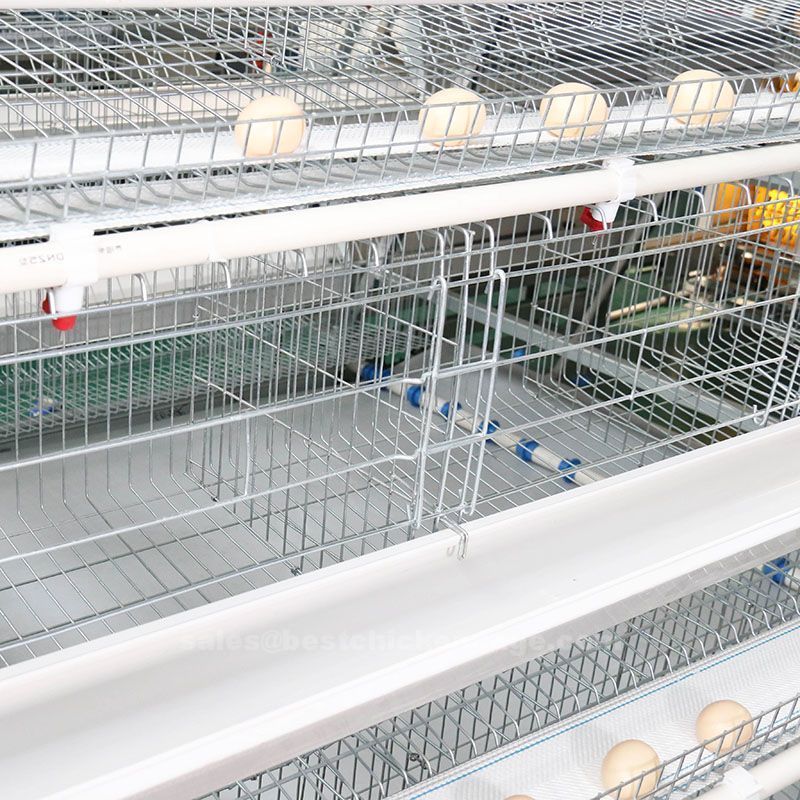

Battery cage system materials

1. 27g/m2 hot dip galvanized or Galvan wire, lifespan is about 15-20 years

2. The smooth surface can reduce the rate of disease

3. Eggs breakage is less than 0.5 per thousand

4. Never distort

Automatic drinking water system

1. The water route connection is all sealed to avoid the contact with air and dust, ensuring clean water and preventing water pollution

2. The drinking nipple is designed with high sensitivity, which can ensure 360 degrees rotation

Feeding trough

1. Pure PVC

2. Strong

3. Smooth

4. Healthy

Cage stand

1. Reasonable stagger distance between upper and lower cage prevent the manure droppings from upper cage to the lower cage chicken

2. Reasonable slope at the bottom mesh reduces the rate of broken eggs (cage stand)

3. The U shaped steel frame is solid enough to support the cages

Feeding system

The feeding system adopt the automatic control system. The machine can walk and stop automatically. The feeding mouth with uniform material device can ensure feed be sown evenly in the feed trough according to the setting of the feed, which can prevent feed wastage

We are always happy to support our customers and partners with technical questions, products you may want to learn more, click the name to visit
1. Automatic battery cage for pullet, brooder, layer, chicken parents and broiler
2. Chicken feed mill, manure drying machine and egg collection
3. Deep litter plasson drinker, feeder and broiler slaughtering equipment
4. Other poultry farm equipment...
Bookmark our website and contact us now to making enquiry, visiting to our office and factory and checking the sample...

Specification

1. Feeding trolley, each tier with two hoppers, 60kg, and hot dip galvanized steel, high quality and efficiency motor

2. Feed conveying and dispensing device

3. Delivery auger pipe, PPR, Diameter 90mm

4. Auger, import from South Africa

5. Feed silo, 5t to 30t can be chosen

Egg collection system

The automatic egg collection system can be transported to the egg packaging or central egg library very fast and efficiently. It makes egg sorting and packing so easy. Automatic egg collecting system has the function of preventing the falling and breaking of the eggs, the broken egg rate less than 0.2%

Specification

1. Motor, 0.4kw, 380v, 50Hz contain eggs

2. High quality belt, width: 100mm, thickness 1mm

Automatic manure removing system

Advantage The automatic manure removing system is equipped with two manure cleaning devices to ensure clean and pollution free environment. The manure removing belt is made of high strength PP composite with friction resistance and corrosion resistance. It has long lifespan, which is not easy to be deformed

Specification

1. Manure conveying belt, material PP

2. Horizontal transport manure device, convey manure out of layer house to truck automatically

3. Width 44cm

Ventilation

Ventilation fan system controls poultry house inner environment, provides fresh air, proper humidity for your chickens, ensuring your broilers provide maximum production

Cooling pad system

When the air goes through cooling pads, the heat will be taken down by the evaporation of water. So the air will be cooled before going into your poultry farm

Environmental control equipment

The environmental control system monitors the environmental data of the chicken shed constantly based on temperature and humidity sensor data .It controls the cooling fans, cooling pads and the clear story automatically by a microcomputer integrated system

Why you should choose our company

1. We meet the urgent needs of poultry farmers

2. Our company produces quality products that its standard cannot be compared with others

3. We give listening hears to our customers

Our services

1. We manufacture and supply any equipment related to poultry farming

2. Accurate guide for poultry beginners

3. Our company design poultry house suitable for battery cages for our customers

4. We guide our customers on how to build a perfect poultry house for free

5. We ensure timely delivery of goods to our customer's location

Frequently ask questions

Q: What other poultry equipment do you supply

A: Feed mill machine, manure dryer machine, manure scrapper machine, incubator, pellet machine, manure feeder and drinkers, automatic bell drinker and lots more

Q: What makes battery cage so important in poultry farming

A: Battery cage is so important because of its unlimited advantages in poultry farming

Q: Do I need much space with the use of battery cage

A: Battery cage does not require much space
